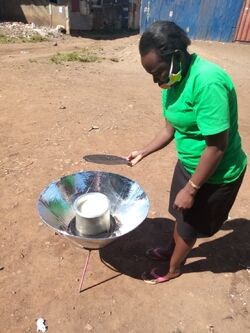

Conical Cooker in use in Nairobi, Kenya
The Conical Cooker consists of a piece of iron that is bent into a cone shape and is covered on the inside by reflecting foil. Inside the cone there is a platform of blackened iron on which a blackened pan is placed.
The sun rays reflect from the foil onto the pan and platform, which absorb the radiation and thus are heated. Putting a transparent sleeve or plastic bag around the pan, or a transparent cover above it, yields higher maximum temperatures and thus faster cooking.
When using a conical cooker with a diameter of 80 cm, 1 liters (0.3 gal.) liter of water can be brought to boiling in about 20 minutes. While cooking food, temperatures in excess of 150 °C (302 °F) can be reached.
A later version is tilted 20 degrees to one side so that it can also be used when the sun is at a low angle in the sky.
Construction plans[]
Contact[]
Henk Blok and Samuel Odhiambo
Email: asulmacentre@yahoo.com
- See Solar Cooking KoZon.Solar Cooking KoZon
- See Asulma Centre Self Help Group.Asulma Centre Self Help Group
