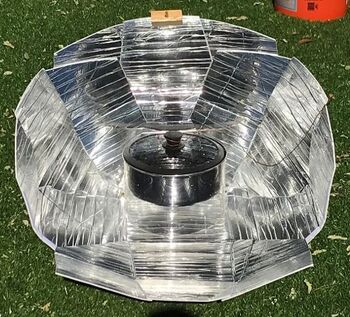

The Haines 2.0 solar panel cooker
Haines Solar Cookers began producing a new Haines 2.0 Solar Cooker in spring of 2018. The Haines 2.0 solar cooker has been Performance Evaluation Process (PEP) tested by Solar Cookers International. See the PEP results
Separate from SCI's PEP testing, Haines Solar Cookers conducted their own non-ISO-based tests. According to Roger Haines, the new cooker heats water almost twice as fast as other panel or box cookers. In late January 2018, Roger Haines conducted side-by-side tests in Del Mar, California, comparing the new cooker with his original Haines Solar Cooker, a Haines-Copenhagen, and the popular CooKit.

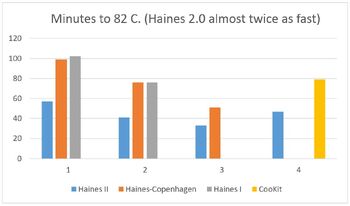

Cloud and wind conditions varied over the four days of testing, but under all conditions, the new Haines 2.0 cooker consistently heated a liter of water almost twice as fast as the other solar cookers. The time it took for each cooker to reach 82 °C (180 °F). is shown in the table.
Significantly, the new Haines 2.0 reached 100 °C (212 °F). every day of testing, despite clouds, wind, or cool temperatures that caused the other cookers sometimes to “top out” between 82 - 92 °C (180 - 198 °F). For that reason Haines selected 82 °C (180 °F) as the temperature to compare the cookers.
News[]
- May 2023: Recognition and recommendations received for the Haines 2.0 panel cooker
Haines 2.0 used as a heat retention basket, Photo credit Roger Haines
- April 2023: Haines 2.0 also used as a heat retention basket - Roger Haines has provided details on how to also use the hybrid Haines 2.0 for heat retention cooking. The side 'petals' fold up to form an enclosure for an insulated pot. See complete instructions...
- January 2020: Haines 2.0 Solar Cookers for Refugees in Uganda - Thirty-three women in the Palabek Refugee Community in northern Uganda received Haines 2.0 Solar Cookers and were extensively trained in how to use them. The project was organized by the Gulu-based Alliance for African Assistance in partnership with the African Refugee Education Project, the San Diego Rotary Club, Solar Household Energy and the Solar Connect Association of Uganda. The goal is to establish 33 women in the community as long-term solar cooking enthusiasts. Three of the women will be selected by their peers as to conduct periodic surveys to evaluate the long term use and adoption of the cookers, and the possibility of establishing a sustainable solar cooker enterprise in the community.
- June 2019: Roger Haines conducted cooking tests with the Haines 1 and 2 versus the CooKit and HotPot showing that the former two cookers heated water much faster than the latter two during a Southern California summer. More information...
Storage and shipping[]
Despite its large size, the new Haines 2.0 cooker easily fits in a “yoga mat” bag (included) 13 cm. in diameter and 60 cm. long (24” x 5” x 5”), that weighs just 0.8 kg (1.8 lbs).
Windscreen[]
The new Haines 2.0 solar cooker has a transparent circular windscreen to retain more heat in cool or windy conditions.
Reflector[]
The reflector is made from the same MPET (metalized polyester foam) material that we use for all of our solar cookers. This material has the right combination of flexibility, stiffness and durability to hold its shape, even in breezy conditions.
Glazing[]
Panel solar cookers work best when the pot is enclosed in some kind of insulating “greenhouse.” For all of hiscookers, Haines makes use the Haines Cooking Sleeve—a rectangle of 0.5 mm transparent UV-resistant polycarbonate plastic rolled into a cylinder secured with large paper clips. The sleeve is adjustable to fit any pot that has a top rim or “flange” and no handles, such as our own 4-quart Haines dutch oven with silicone and glass lid. The cooking sleeve insulates and elevates the pot off the surface of the cooker so that sunlight can be reflected onto the bottom of the pot.
- Main article: Glazing
Documents[]
- May 2020: Safe Drinking Water For the World - Roger Haines
