Note that this page emphasizes ideas for solar low-tech tracking methods that could be built with materials available in developing countries.
- Main article: Solar tracking
Revolutionary Solar! Stirling engine mount Liquid piston tracker
- See Tracking Solar Accumulating Barbecue].Tracking Solar Accumulating Barbecue]

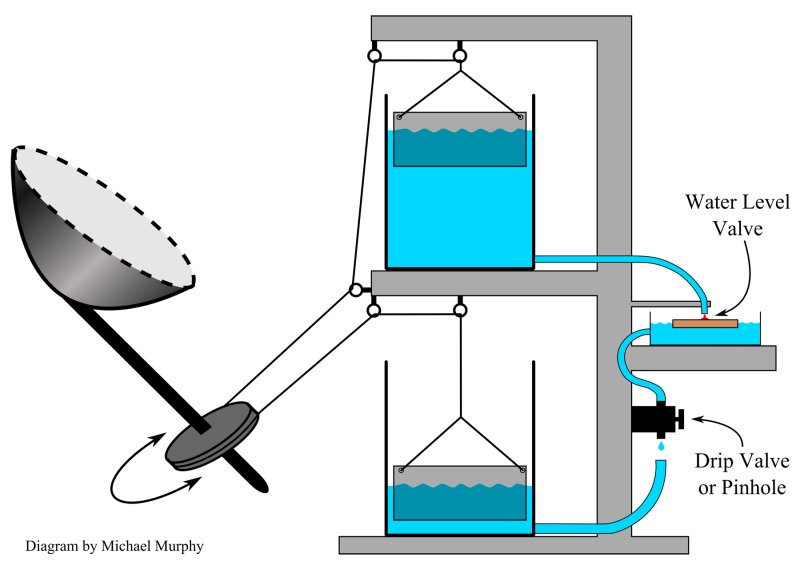

Brian White's diagram of the dripper tracker which is potentially a highly accurate waterclock. Graphic by Mike Murphy.

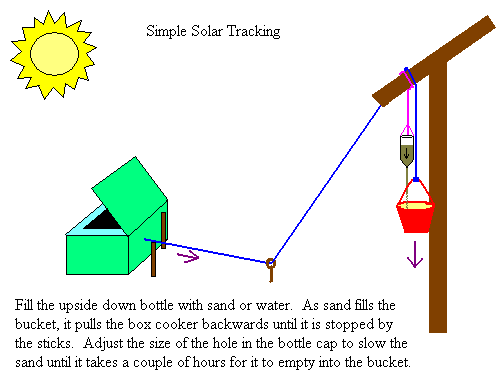

qtsunshine@hotmail.com's design for a simple system to reposition a solar cooker automatically while unattended.

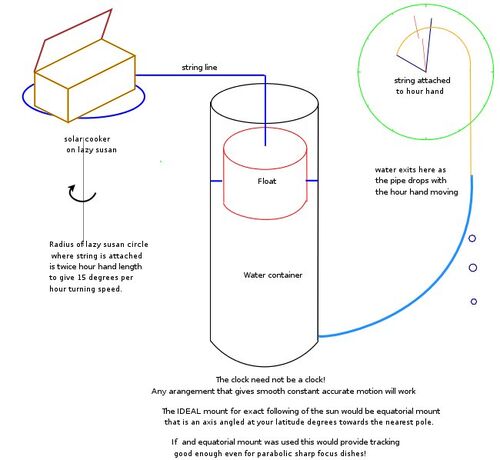

]Tracking mechanism that uses the hour hand of a clock to control the turning of a solar cooker

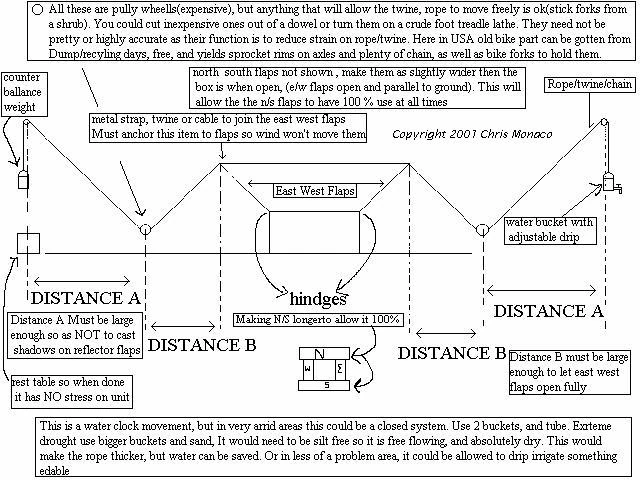

A plan for a solar water clock drive submitted by ChrisM1111@aol.com

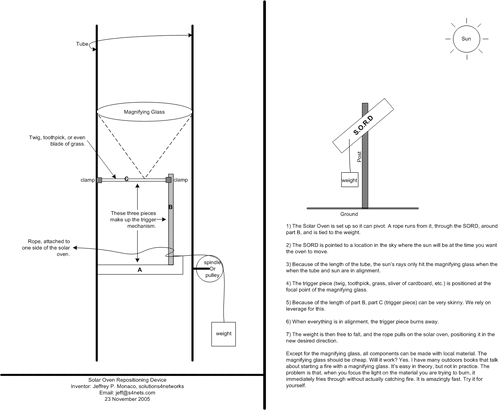

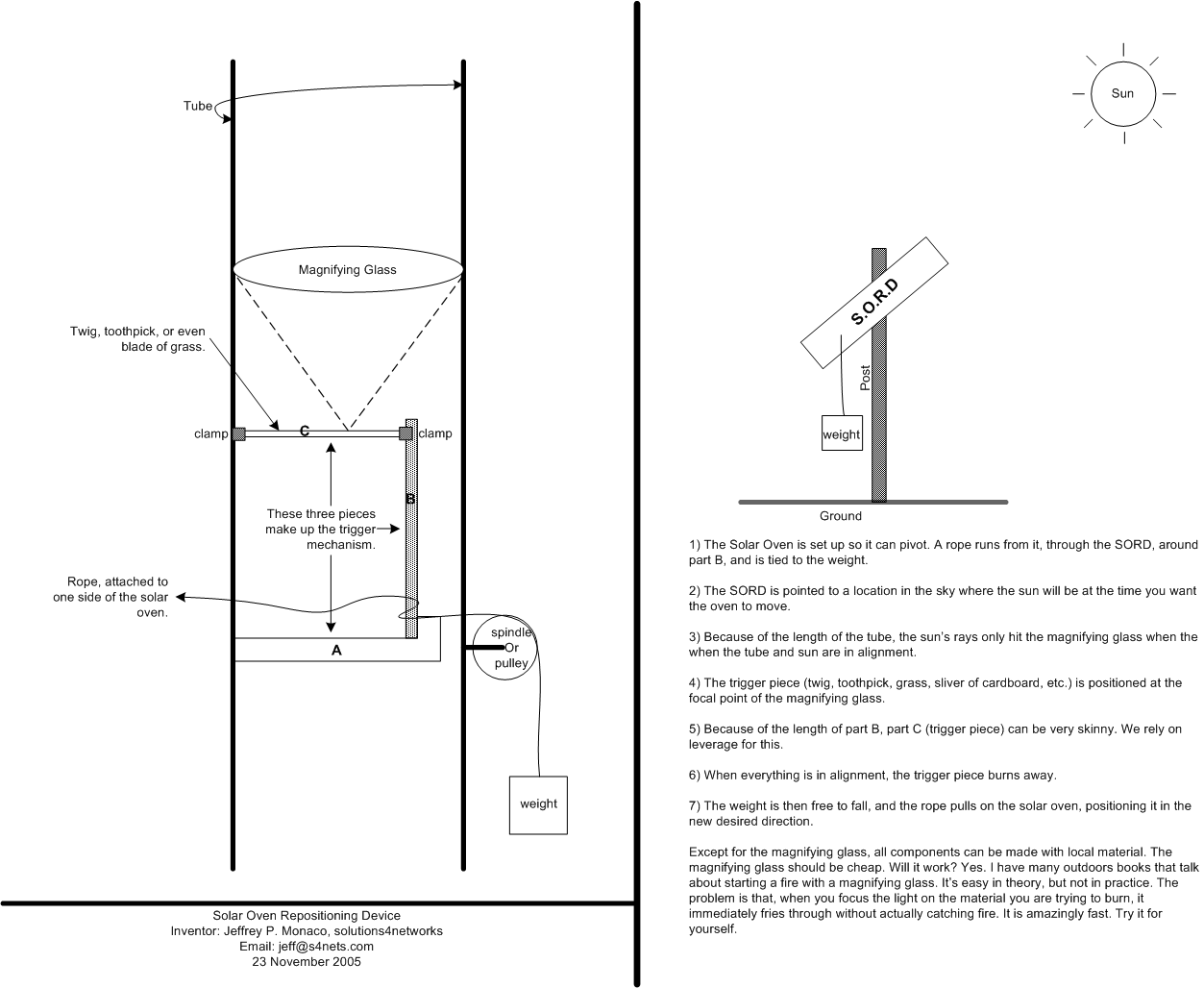

Solar oven repositioning device designed by Jeff Monaco. Tom Sponheim suggested using wax melting instead to remove the need for a magnifying glass.

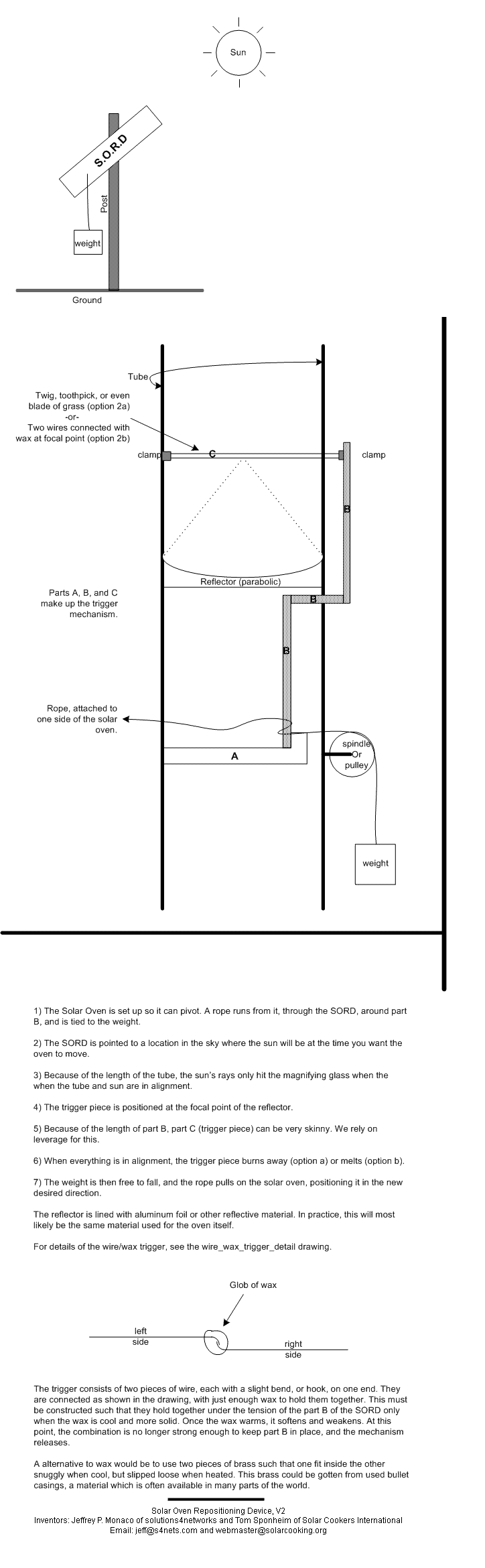

Tom Sponheim suggested using wax melting instead to remove the need for a magnifying glass

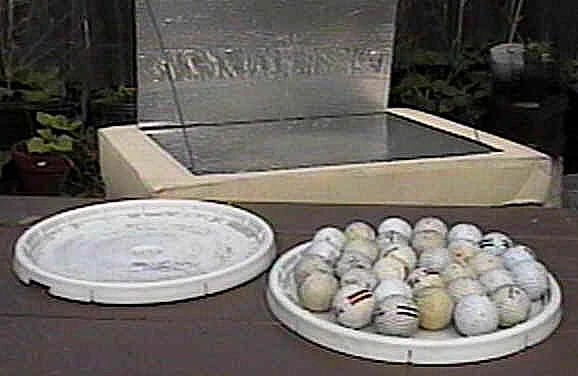

A revolving base can be made using golfballs.

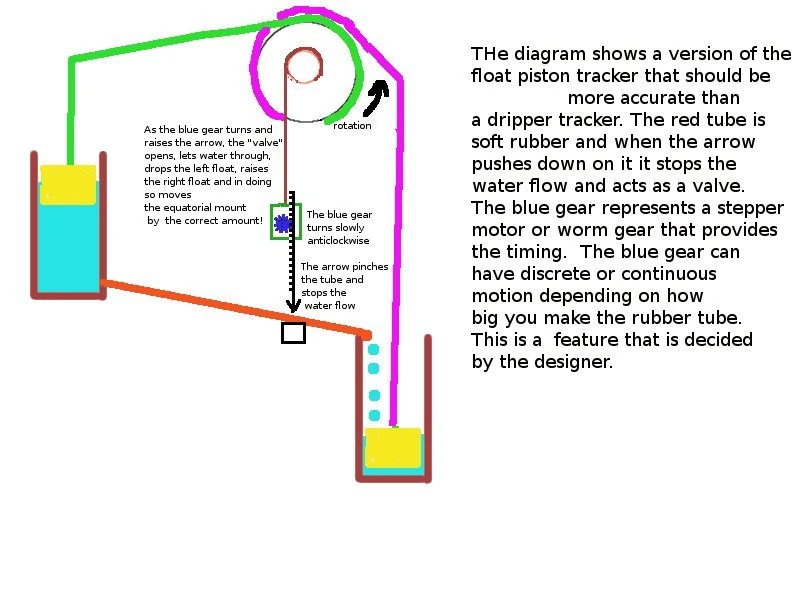

Provisionally called liquid piston tracker

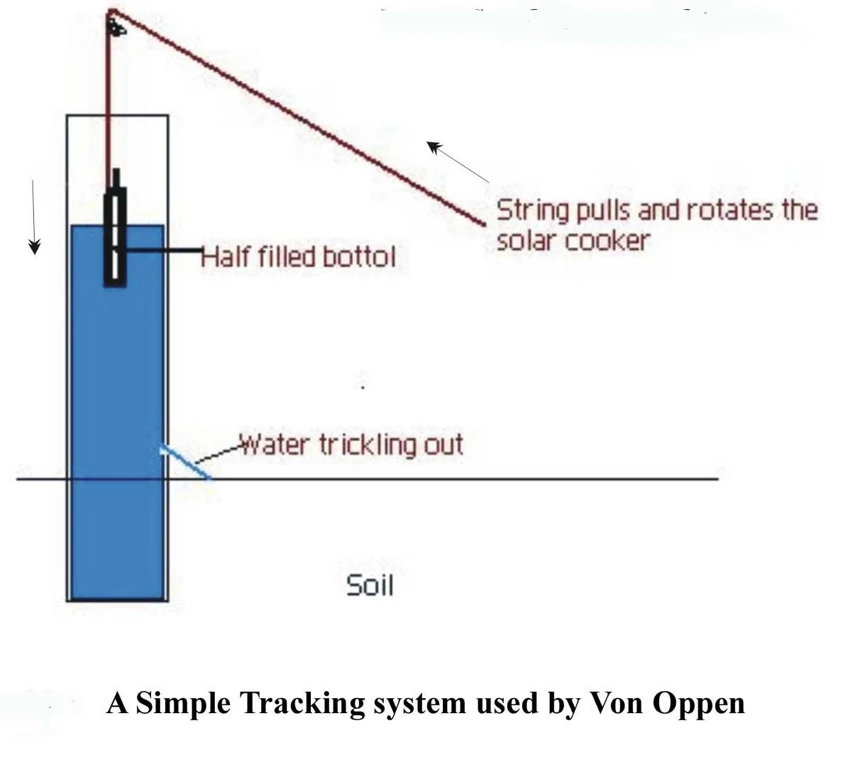

The Von Oppen system uses a half filled bottle to act as a floating piston, which drops when the water is slowly drained from the reservoir.
