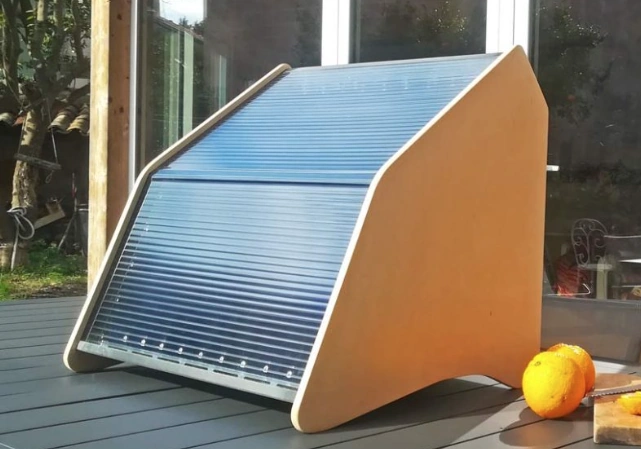

PRISMA 6 hybrid solar food dryer, Photo credit PRISMA
PRISMA 6 is patented indirectly heated solar-powered dryer capable of drying products using the heat of the sun without exposing them directly to the sun’s rays. Furthermore, thanks to a particular innovative energy storage solution, the system is able to use the heat of the sun and continue the drying process even during the night.
PRISMA is optimized for use throughout the year. It should be kept in a place well reached by solar radiation and it is not necessary to move it from its position during the day. The machine must be connected to the mains using the power cable supplied. In the presence of the sun, the electricity consumption is due to the operation of the fan only. The machine is equipped with a suction filter which can easily be cleaned and/or replaced. In the event of a prolonged absence of solar radiation, the system automatically activates an auxiliary heater so as to be able to complete the started drying process, leaving the product comfortably inside the machine.
More info: Prisma dryers
TECHNICAL DATA
✓ Working temperature range 35°C – 65°C temperature range 35°C – 65°C;
✓ Dimensions 46 x 56 x 52 cm;
✓ Weight 12 kg;
✓ 6 stainless steel drying trays included;
✓ Load area 0,75 m²;
✓ Load capacity 6 kg (referred to tomatos);
✓ Power supply AC 220 – 240 V, 50Hz;
✓ Power absorbed 500 W;
✓ Display touch 3,5”.
✓ The parts in contact with the product are made of AISI 304 stainless steel sheet;
✓ Operation with solar energy allows you to save up to 90% on management costs compared to a traditional dryer without air recirculation and powered only by electricity;
✓ Through a control panel it is possible to set different programmes, times and working temperatures;
✓ Constant control of the process through the use of a temperature and humidity probe;
✓ High heat efficiency rate, thanks to the use of recirculation and advanced air flow control that minimizes heat losses;
OPTIONS
✓ Solar energy storage system in the form of latent heat;
✓ UV lamp;
✓ Data communication and control via WIFI connection;
✓ AISI 304 stainless steel mesh baskets for drying aromatic herbs.
