Water distillation can be used to obtain safe water to drink using solar energy. Often this involves removing the salt from seawater, which makes up over 95% of the water on the planet, but is also useful in removing contaminants and disease-causing organisms. Most approaches use an evaporation technique. The water is first evaporated, it then condenses and is recaptured as fresh water. Several systems are now using the sun's energy for the evaporation.
Contents
Eliodomestico Solar Still[edit | edit source]
A compact solar still example, is the Eliodomestico Solar Still.
The still heats either salty or dirty water in the upper chamber, steam is created, and fresh water condenses and collects in the lower chamber of the Eliodomestico Solar Still.
SunDwater distillation system[edit | edit source]
SunDwater distillation system
An Israeli company, SunDwater has developed a system capable of 400 liters (104 gal.) of fresh water each sunny day, which uses a four sq. meter parabolic solar reflector to concentrate a high temperature focus on the seawater vessel. New water is constantly pumped back into the closed system as the water evaporates.
Watercone[edit | edit source]
Watercone solar still
A simple inexpensive, and mobile device for solar potable water generation from sea water or brackish water based on condensation. With a base diameter of 80 cm (31.5 in), the still is reported to be able to condense roughly one liter of water per day. Read more...

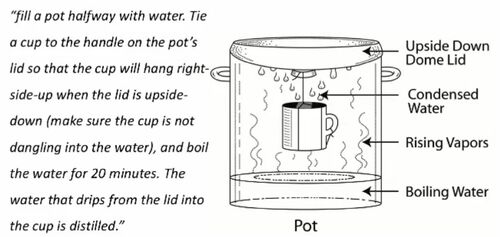

Very low-tech distillation[edit | edit source]
Source: smartlivingshopper.com
Audio and video[edit | edit source]
- March 2021:
Craig Bergland- The Found Art of Solar Energy
See water distillation technique at 21:10 with Craig Bergland
- March 2017:
Articles in the media[edit | edit source]
- April 2017: US researchers discover new way to procure water from thin air - ABC.net.au
- September 2014: Clean Water For The World: Simple Solar Oven Makes Salt Water Drinkable - PreventDisease.com
- August 2012: A Simple Solar Oven Makes Salt Water Drinkable - Co Design
Documents[edit | edit source]
- January 2018: Purification of Water Using Solar Energy - V. Avinash Reddy, et al
- July 2006: NUMERICAL SIMULATION OF THE DIRECT APPLICATION OF COMPOUND PARABOLIC CONCENTRATORS TO A SINGLE EFFECT BASIN SOLAR STILL - Joshua Pearce
- Distilador solar de agua - Grupo Fenix
